Extending Battery Life with PWM Solar Charge Controllers During Blackouts

A PWM solar charge controller is a narrow but useful tool for outage planning. In the right setup, it helps a small solar panel charge a battery safely enough to support limited loads such as LED lights, phones, radios, or a fan. It is not a whole-home backup strategy, and it is usually not the right match for high-voltage residential solar modules or for situations where every possible watt matters.

For homeowners, that matters because blackout planning is often about a short list of essentials, not about running everything. If your outage goal is modest—keep one battery charged, run a fan at night, keep phones topped up, or power a few lights—a PWM controller can make sense. If your goal is closer to “run major appliances reliably through bad weather,” you are usually outside the strongest use case for PWM and into MPPT or a different backup category altogether (Morningstar; SRNE).

The practical value of this guide is not that PWM performs miracles. It does not. Its value is that it can regulate charging in a simple battery-based solar setup and help you avoid damaging the battery during a multi-day outage. That is enough to make it relevant for small, intentional emergency systems.

What Is a PWM Solar Charge Controller?

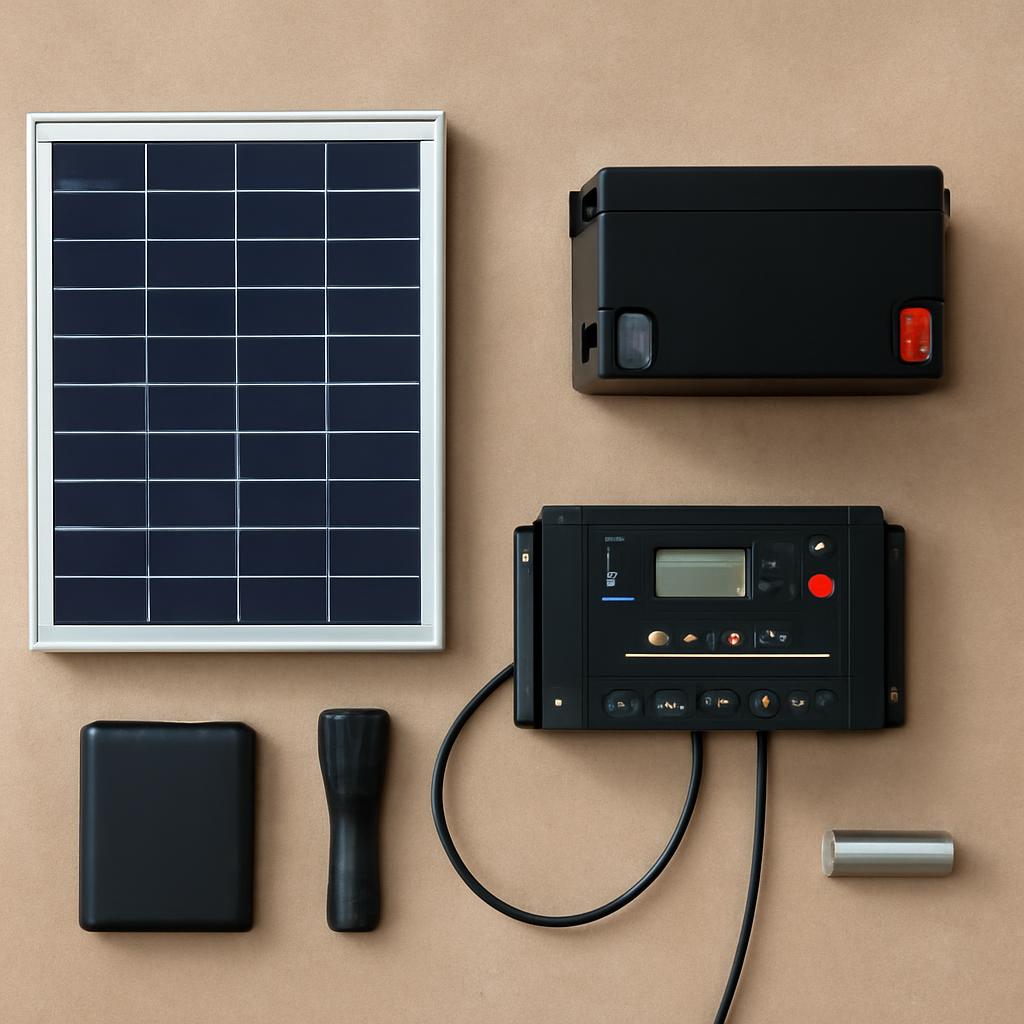

PWM stands for Pulse Width Modulation. In plain terms, a PWM controller sits between a solar panel and a battery and regulates charging so the battery is not connected to panel output with no control at all. Multiple explanations describe PWM as making a direct connection from array to battery and rapidly pulsing that connection on and off to reduce charge rate as the battery fills (Morningstar; Eco-Worthy UK; SRNE).

The defining electrical behavior is that a PWM controller operates at roughly battery voltage. Morningstar’s explanation is the clearest version of this: with PWM, the controller effectively pulls array voltage down toward the battery instead of converting surplus voltage into additional charging current the way MPPT does (Morningstar). That is why PWM works best when the panel is already a good match for the battery bank—such as a 12V-nominal panel feeding a 12V battery system.

This is also why PWM has a narrower sweet spot than MPPT. If the panel’s best operating voltage sits far above battery voltage, PWM cannot take full advantage of that extra voltage. It will still regulate charging, but it will not recover the unused voltage as extra current. So the core promise of PWM is not “maximum harvest.” The core promise is simple, controlled charging in a matched small system (Morningstar; Eco-Worthy UK).

PWM controllers also typically charge in stages rather than treating the battery like an on/off bucket. Consumer and technical explanations commonly describe bulk, absorption, and float stages. In bulk, the battery takes the strongest charge. In absorption, the controller tapers charging as the battery nears full. In float, it maintains the battery without continuing a hard push into it (Eco-Worthy UK; Renogy collection page). The exact stage names and settings vary by controller, but the general idea is consistent: reduce battery stress by charging differently at different states of charge.

For outage use, the protection role is just as important as the charging role. A controller exists because a battery should not be left to uncontrolled panel output. General controller guides say this component helps prevent overcharging, blocks reverse current from battery back into panels at night, and in many systems can disconnect loads to reduce harmful deep discharge (A1 SolarStore; SRNE). Exact protective features are model-specific, but the category-level purpose is clear: regulate charging and help keep the battery within safer operating limits.

So the simplest accurate definition is this: a PWM controller is a basic solar battery regulator. It does not enlarge your panel. It does not replace a bigger battery. It does not make a mismatched high-voltage panel suddenly ideal for small backup use. What it can do is manage charge from a small, matched solar setup in a way that is affordable and straightforward.

PWM vs MPPT: Key Differences for Outage Use

For blackout planning, the useful question is not “Which technology wins in general?” It is “Which technology fits the kind of outage system I am actually building?”

PWM is usually the simpler and cheaper approach. Multiple sources describe it as the lower-cost choice for small, basic, matched-voltage systems (Morningstar; SRNE; Anern). If the system is a modest panel, a 12V battery, and a handful of light loads, that simplicity has value.

MPPT, by contrast, is built to harvest more energy when panel voltage is above battery voltage. Morningstar says MPPT controllers generally harvest 5% to 30% more energy than PWM depending on conditions (Morningstar). Other comparisons often describe the advantage as roughly 20% to 30% in favorable conditions, especially with mismatched panel voltage or colder weather (Eco-Worthy UK; Solarcraft). Those numbers are not contradictions so much as reminders that the gain is condition-dependent, not automatic.

MPPT usually pulls farther ahead when:

• panel voltage is significantly above battery voltage,
• the weather is cold, which raises module voltage,
• sunlight is variable enough that tracking the panel’s best operating point matters,
• or the array is large enough that extra harvest changes how long the system can run (Morningstar; Solarcraft; Ozark Mountain Offgrid).

PWM still has a real use case, but it is narrower:

• small systems,
• matched panel and battery voltage,
• warm or hot climates where panel operating voltage is naturally closer to battery charging voltage,
• stable sunny conditions,
• and budgets where simplicity matters more than squeezing out every possible watt (Morningstar; SRNE; Solarcraft).

One nuance matters for homeowners building outage kits: if the load is small relative to the array and battery, PWM’s lower harvest may matter less in day-to-day use. Solarcraft notes that when the array is large relative to battery draw and the battery stays near full, a PWM controller can maintain the system efficiently enough without the added cost of MPPT (Solarcraft). That does not mean PWM equals MPPT. It means the real-world difference may be less important if the system is intentionally light-duty.

A useful outage decision framework looks like this:

PWM is usually a reasonable fit when: - you are charging one small battery bank, - the panel is a close voltage match, - your loads are limited to lights, phones, fans, radios, or similar essentials, - and the system is supposed to be simple and easy to inspect.

MPPT is usually easier to justify when: - you are using higher-voltage panels, - the system must perform through colder or cloudier weather, - your loads are large enough that every bit of panel output matters, - or you expect the system to grow.

For most homeowners, that means a PWM controller is not the “best” controller in a vacuum. It is the appropriate controller for a specific class of small emergency setups.

Common PWM Specifications and Ratings

The most repeatable pattern in consumer PWM listings is not a single universal spec sheet but a narrow cluster of common small-system ratings. Across mainstream retail pages, PWM controllers commonly appear in 10A, 20A, and 30A sizes and often support 12V/24V battery systems with automatic voltage detection (Renogy collection page; ExpertPower listing).

Some sales pages also advertise PWM controllers for 36V or 48V systems, but those claims are less consistently documented in the evidence here and should be treated as model-specific, not category-standard (PowMr collection page). For practical homeowner planning, the safer assumption is still that PWM buying is centered on the 12V/24V small-system category unless the exact data sheet says otherwise.

Just as important, the headline amp rating does not tell you everything you need to know. Two controllers both labeled “10A” or “30A” can have very different solar input limits. Published product examples in the evidence pack range from 25VDC maximum solar array voltage, no-load on one 30A unit to 55V maximum PV input voltage on one 10A unit (example; example). Those are only examples, not a market-wide range, but they show why the amp label alone is not enough.

The same caution applies to standby draw. Published examples in the evidence pack show controller self-consumption in the single-digit to low-teens milliamp range, such as 5mA max on one listing and 8mA at 12V / 12mA at 24V on another (example; example). That is useful as a reminder that small systems should care about controller idle draw, but it is not strong evidence for a universal rule. Check the exact unit.

For sizing, the broad guidance is more consistent than the shopping specs. Setup guides generally recommend choosing a controller whose current rating meets or exceeds expected array current and adding about 25% to 30% margin (SRNE; A1 SolarStore; Ozark Mountain Offgrid). That margin rule is more useful than memorizing marketing classes.

The homeowner takeaway is simple:

• expect to see many PWM options in the 10A to 30A range,
• expect 12V/24V systems to be the most common small-system target,
• and never size the controller from the front label alone.

Check battery voltage, array current, and maximum PV input voltage together.

Battery Compatibility with PWM Controllers

Battery compatibility is one of the areas where the evidence is most commercial and the least standardized, so it needs careful wording.

The clearest pattern across retail listings is support for common lead-acid battery types such as AGM, GEL, and flooded batteries. Many listings also advertise compatibility with LiFePO4 or lithium batteries more broadly (Renogy collection page; Amazon marketplace example; ExpertPower listing; published example). But that does not mean every PWM controller supports every chemistry equally well.

For blackout use, the safe interpretation is this: battery chemistry support is model-specific. “Lithium compatible” can mean very different things from one controller to another. It may mean: - a dedicated LiFePO4 profile, - a selectable preset, - or simply a charging voltage range the seller believes is acceptable.

Because the available evidence on this point is dominated by retailer and vendor pages, the right homeowner habit is to verify the actual battery profile in the manual before assuming a controller is suitable for your battery.

Temperature compensation is another example of a real but non-universal feature. One published PWM listing in the evidence pack gives -3mV/°C/2V as its temperature-compensation figure (ExpertPower listing). That matters especially for lead-acid charging, because desired charge voltage changes with temperature. What it does not prove is that every PWM controller offers the same feature or that lithium systems need the same behavior. Again, the manual for the exact controller and the charging requirements of the exact battery should decide the issue.

The same caution applies to low-voltage operating thresholds. One published controller spec lists a minimum operating voltage of 8VDC (published example). That tells you the controller may still function when a 12V battery is deeply depleted; it does not mean dropping a battery that low is a good operating target. More general controller guidance still emphasizes overcharge control and deep-discharge protection as the reason the controller is there in the first place (A1 SolarStore; SRNE).

A good buying rule for homeowners is:

• if you already own the battery, buy the controller around the battery’s charging requirements;
• if you already own the controller, read the manual before assuming it supports all the chemistries shown in the product photos or sales text.

Wiring a PWM Solar Charge Controller Safely

The most consistent wiring instruction in the evidence pack is also the most important one: connect the battery first, then the solar panels, then the load if the controller has load terminals (SRNE; A1 SolarStore; Anern).

Why battery first? Because many controllers use the battery connection to identify system voltage—typically 12V or 24V in small systems—and initialize correctly (Anern). If you reverse the sequence, the controller may not set itself up the way it should.

For conductor choice, general installation guides say to use stranded copper wire sized for the current the system can actually carry (A1 SolarStore). The exact controller terminals matter too. Published examples in the evidence pack show one small PWM model accepting wire up to #14 AWG and another larger model accepting up to #8 AWG stranded (example; example). Those are examples only, but they show why the controller manual, not generic advice, should win on terminal fit.

Panel connection details depend on the array layout. General wiring guidance says solar panels typically use MC4 connectors, with male MC4 on the positive lead and female MC4 on the negative lead. For series wiring, you connect opposite panel ends and bring the remaining leads onward; for parallel wiring, you typically use branch connectors or a combiner approach (A1 SolarStore).

For outage preparedness, simpler is usually better. That simplicity is part of the case for PWM in the first place. Before energizing anything:

• verify polarity,
• follow the controller’s own wiring diagram,
• match the controller to the battery voltage it expects,
• and follow local electrical requirements and the manufacturer instructions (SRNE; A1 SolarStore).

A practical scope limit is worth stating clearly: this kind of article is most useful for small standalone battery charging systems. If your plan involves permanent integration with household circuits, high-voltage modules, or wiring you cannot confidently identify and inspect, PWM selection becomes only one small part of a much bigger design and safety problem.

PWM Controllers in Outage Scenarios

The best use of PWM in a blackout is modest and specific: help a small solar panel recharge a battery that supports a few low-power essentials.

Heat management is a good example of where that matters. OutageGuide’s summer outage guide notes that upper floors are often 5°F to 10°F hotter than ground floors, while basements often stay around 55°F to 65°F year-round. It also notes that a 40Wh USB battery bank can run a 5W fan for about 8 hours, and a 100Wh power station can run a 20W fan for roughly 4 to 5 hours (OutageGuide heat guide). Those numbers do not prove what a given solar panel will recharge in a given day, but they do show why even small amounts of battery-backed airflow can matter during an outage.

That leads to a realistic use case for PWM: not “run air conditioning,” but support a small battery charging loop for a fan, lights, or communication gear. During hot-weather outages, the same OutageGuide guidance recommends moving people to the lowest livable level, blocking sun, ventilating at night, and using battery-powered fans to improve perceived comfort (OutageGuide heat guide). A PWM-controlled solar setup can fit into that plan as one way to recharge the battery during daylight, but the exact result depends on panel size, battery capacity, and available sun. It should never be treated as guaranteed multi-day runtime from an undefined kit.

Lighting is another strong fit. The same is generally true for phones, radios, and other communication devices. PWM is most useful when the list of essentials stays short enough that a small battery and panel can plausibly support it.

Refrigeration is where expectations usually need to come back to earth. A small PWM setup belongs to the same small-system category described by Morningstar, SRNE, and Solarcraft—not to the category of trying to carry large compressor loads continuously (Morningstar; SRNE; Solarcraft). OutageGuide’s own refrigerator food safety during a power outage guide is framed around the 4-hour rule, which is a different problem from controller choice (OutageGuide listing).

The simplest way to think about PWM during blackouts is this:

Good fit - one or two fans, - LED lighting, - phones, - radios, - small monitoring or communication loads.

Poor fit - central air conditioning, - electric cooking, - large pumps, - or the expectation that one modest panel will behave like a serious backup power plant.

PWM helps most when you already accept those limits.

Protections and Limitations of PWM Controllers

A charge controller is worth using mainly because it adds protective behavior that a direct panel-to-battery connection does not.

Published specs and installation guides commonly describe PWM controllers as offering or contributing to: - overcharge control, - reverse-current blocking, - short-circuit protection, - reverse-polarity protection, - thermal protection, - and in many systems some form of low-voltage load disconnect to reduce deep discharge (A1 SolarStore; published example; published example). Exact protection sets vary by model, but the category-level point is solid: the controller is there to regulate and protect, not just connect wires.

The limitations of PWM are mostly inherent to how it works. Because it operates at battery voltage, it cannot recover surplus panel voltage the way MPPT can. Morningstar is explicit that PWM requires arrays matched to battery voltage, and it notes that many 60-cell modules with maximum power voltage around 30V are not suitable for typical PWM use in 12V/24V battery applications (Morningstar).

That is why PWM tends to leave more energy on the table in: - cold weather, when module voltage rises, - changing or cloudy conditions, - and systems built around higher-voltage panels (Morningstar; Solarcraft; Eco-Worthy UK).

Another limitation is that the label “PWM controller” tells you almost nothing about enclosure durability. Published examples in the evidence pack range from IP22 on one product page to IP67 on another (example; example). Those are not broad market standards; they simply show that you must check the exact enclosure rating before assuming a controller can live outdoors or in damp conditions.

For blackout planning, the practical consequence is straightforward: PWM can be dependable within its lane, but it gives you less electrical margin when sun is poor or the panel is a poor match. If your outage planning centers on winter storms, heavy cloud cover, or high-voltage modules, that limitation matters more than the lower purchase cost.

Sizing PWM Controllers for Emergency Panels

Sizing a PWM controller for emergency use is simpler when you reduce it to three checks:

1. system voltage,
2. current rating,
3. maximum PV input voltage.

The broad rule of thumb in the evidence pack is to estimate charging current by dividing panel watts by battery voltage, then add roughly 25% to 30% margin (A1 SolarStore; SRNE; Solarcraft). That is a sizing shortcut, not a substitute for the manual.

A simple example shows how to use it carefully. A 100W panel on a 12V battery system gives a rough current estimate of 100 ÷ 12 = 8.3A. If the real panel specs or manual leave less headroom than you want, move up (A1 SolarStore; SRNE). The point is not that every 100W panel belongs on every 10A controller. The point is that small 100W/12V kits naturally land near that size class.

If you scale the array up, the same logic applies: - 200W on 12V pushes current much higher and may move you toward a 20A or 30A controller depending on the panel specs and your margin. - The same wattage on 24V produces lower charging current, which changes the controller size you need.

But current rating is only half the check. You also have to verify the controller’s maximum PV input voltage. That matters especially if you start combining panels in series. As noted earlier, published examples vary sharply even among small PWM units, so you cannot assume two controllers with the same amp rating can accept the same panel arrangement (25V example; 55V example).

For outage use, conservative sizing is usually smarter than edge-of-limit sizing. A controller with reasonable margin does not create extra solar power, but it can keep the system within safer operating limits and give you some room for bright conditions or small future changes.

A practical homeowner checklist looks like this:

• Match the controller’s system voltage to the battery bank.
• Estimate array current from panel watts and battery voltage.
• Add about 25% to 30% margin.
• Verify the controller’s maximum PV input voltage against the panel or panel string.
• Keep the design simple enough that you can still understand it when you are tired, hot, and dealing with an outage.
• If the panel is not a close battery-voltage match, or if you need better harvest in poor weather, that is usually the point to step up to MPPT instead of forcing PWM into the wrong job (Morningstar; Solarcraft).

Why connect the battery before solar panels to a PWM controller?

Because many controllers use the battery connection to detect system voltage and initialize correctly. Multiple wiring guides give the same sequence: battery first, solar second, load last (SRNE; A1 SolarStore; Anern).

Is PWM efficient enough for charging batteries during long outages?

Sometimes. PWM is often sufficient for small, matched-voltage systems in decent sun, especially when the loads are modest and the goal is maintaining essentials rather than maximizing harvest. But MPPT generally captures more energy overall, especially in cold weather, with higher-voltage panels, or in systems where the extra output changes runtime materially (Morningstar; Eco-Worthy UK; Solarcraft).

What protections prevent battery damage with PWM controllers?

Common controller functions include overcharge control, reverse-current blocking, and often low-voltage load disconnect to reduce deep discharge. Published controller examples also list short-circuit, reverse-polarity, and thermal protection, though exact features vary by model (A1 SolarStore; published example; published example).

Can PWM controllers handle lithium batteries for outage backups?

Many retail listings say yes, especially for LiFePO4, but those claims should be treated as specific to the exact model rather than assumed for the entire PWM category. Lead-acid compatibility is the most consistent claim; lithium support needs manual-level confirmation before you rely on it in an outage setup (Amazon marketplace example; Renogy collection page; published example).

When should I choose PWM over MPPT for small solar outage setups?

Choose PWM when the system is small, the panel voltage is a good match for the battery, the weather is fairly favorable, and the goal is dependable charging for light loads at lower cost. Choose MPPT when the panel voltage is higher, conditions are colder or more variable, or the extra harvest will materially improve runtime (Solarcraft; Ozark Mountain Offgrid; Morningstar).

A PWM solar charge controller is best understood as a practical regulator for small outage systems, not as a cure-all. When panel voltage matches the battery reasonably well and the loads stay modest, PWM can be a sensible way to keep a battery charged for essentials like lights, phones, and fans. When panel voltage is mismatched, weather is poor, or expectations start drifting toward major appliance backup, PWM’s limits show up quickly. Before installing one, confirm the manual, battery profile, voltage limits, and local requirements. And as OutageGuide’s terms note, this is general preparedness information only; during a declared emergency, follow local authorities and utility providers.
